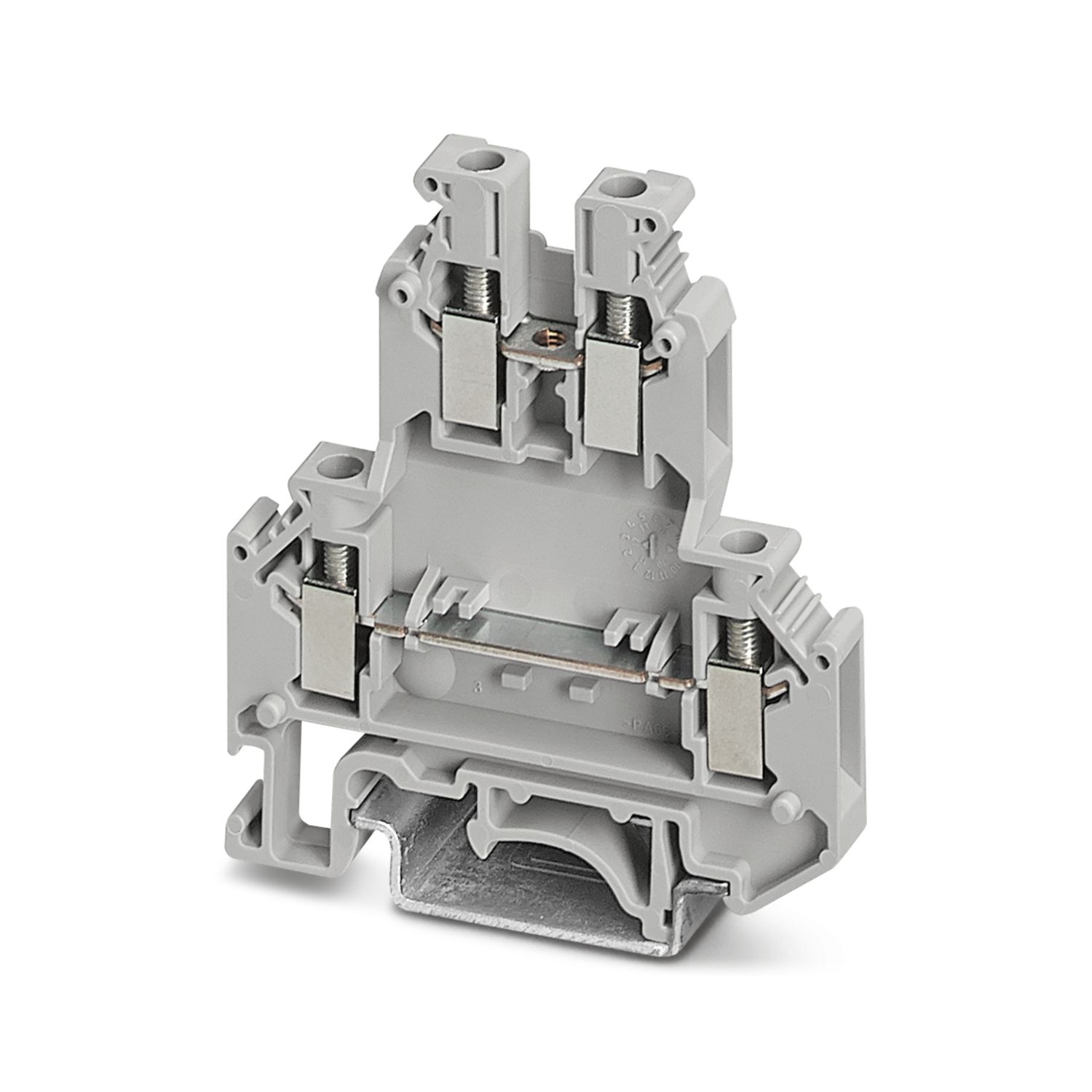

产品型号 SUPU ID | FUKK3 |
| 产品层数 Number of levels | 2 |
| 接线方式 Connection method | 螺钉接线 Screw connection |
| 工作温度 Work temperature | -40~+105℃ |
| 宽度 Width | 6.2mm |
| 接线位数 Number of connections | 4 |
| 防护等级 Protection Level | IP20 |
| 额定电流 Rated Current | 32A |
| 过压类别 Overvoltage category | Ⅲ |
| 额定冲击电压 Rated impulse voltage | 6.0KV |
| 柔性导线截面积 Conductor cross section flexible | 0.2-4mm² |
| 锁线螺钉规格 Locking screw Specification | M3 |
| 固定螺钉规格 Fixed Screw Specification | - |
| 额定电压 Rated Voltage | 500V |
| 污染等级 Pollution degree | 3 |
| 刚性导线截面积 Conductor cross section solid | 0.2-4mm² |
| 柔性导线截面积(带绝缘管套) Conductor cross section flexible with furrule | 0.25-2.5mm² |
| 额定扭矩 Rated Torque | 0.6N.m |
| 剥线长度 Stripping length | 8mm |
| 使用组别 | B | C | D |
| 额定电流 | 6.3A | 12A | - |
| 额定电压 | 500V | 600V | - |
| 额定接线容量 | 24-12AWG | - | - |
| 绝缘材料 Insulation material | PA66 |
| 阻燃等级，符合UL94 Flame retardant grade, UL94 compliance | V0 |
| 导电体表面镀层 Surface characteristics | 镀锡 Sn Plated |
| 绝缘材料组别 Insulation material group | Ⅰ |
| 导电体材料 Contact material | 铜合金 Copper alloy |
